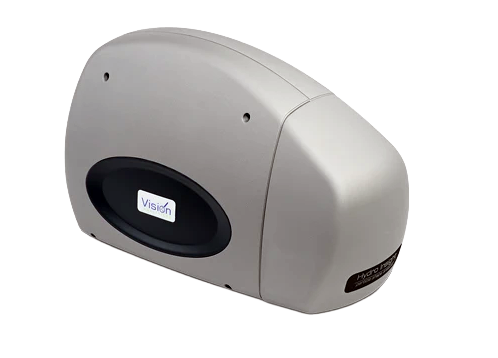

The Hydro Insight is a dynamic imaging accessory that sits alongside the Mastersizer 3000+, providing insights that go beyond particle size distribution to particle images and quantitative particle shape data.
In this way, it helps scientists, researchers, and quality-control managers understand their materials better, develop methods faster, and simplify troubleshooting.
| Principle | Dynamic Imaging |
|---|---|
| Illumination | Xenon Flashlamp |
| Detector type | CMOS sensor |
| Detector | 5 MP (2592 x 1944 pixels)
Pixel size 2.2 μm |
| Lens | Standard magnification: 1 to 300 μm**
Low magnification: 10 to 800 μm** |
|---|---|
| Parameters measured | Size and shape parameters: 31 |
| Typical measurement time | As per laser diffraction |
| Materials in contact with sample | Tygon® SE-200 FEP inner lining, stainless steel 316
Quartz glass window, glass n-BK7 (glass plug) Perlast® G60A FFKM seals |
Request a quote or talk to an expert for more information
